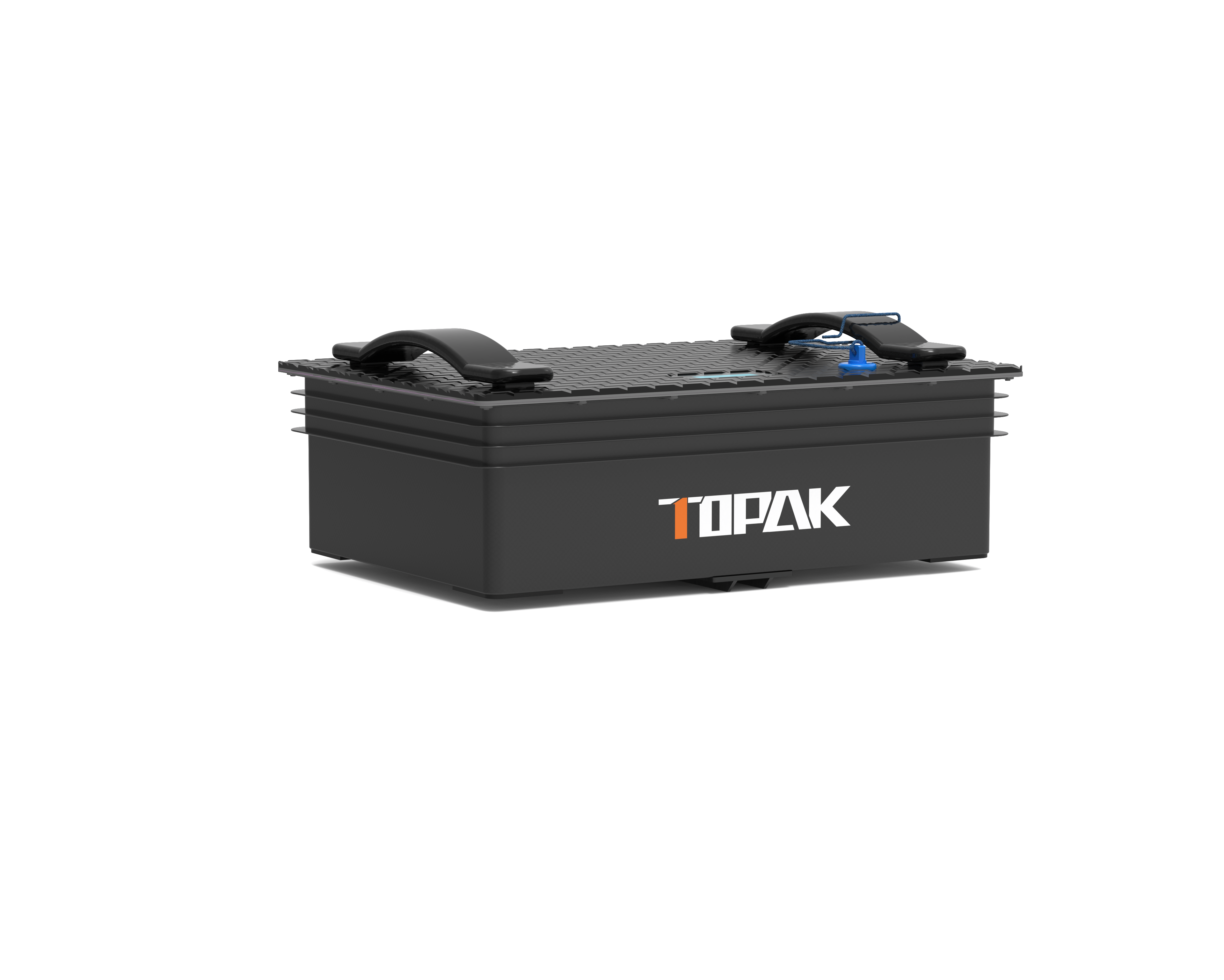

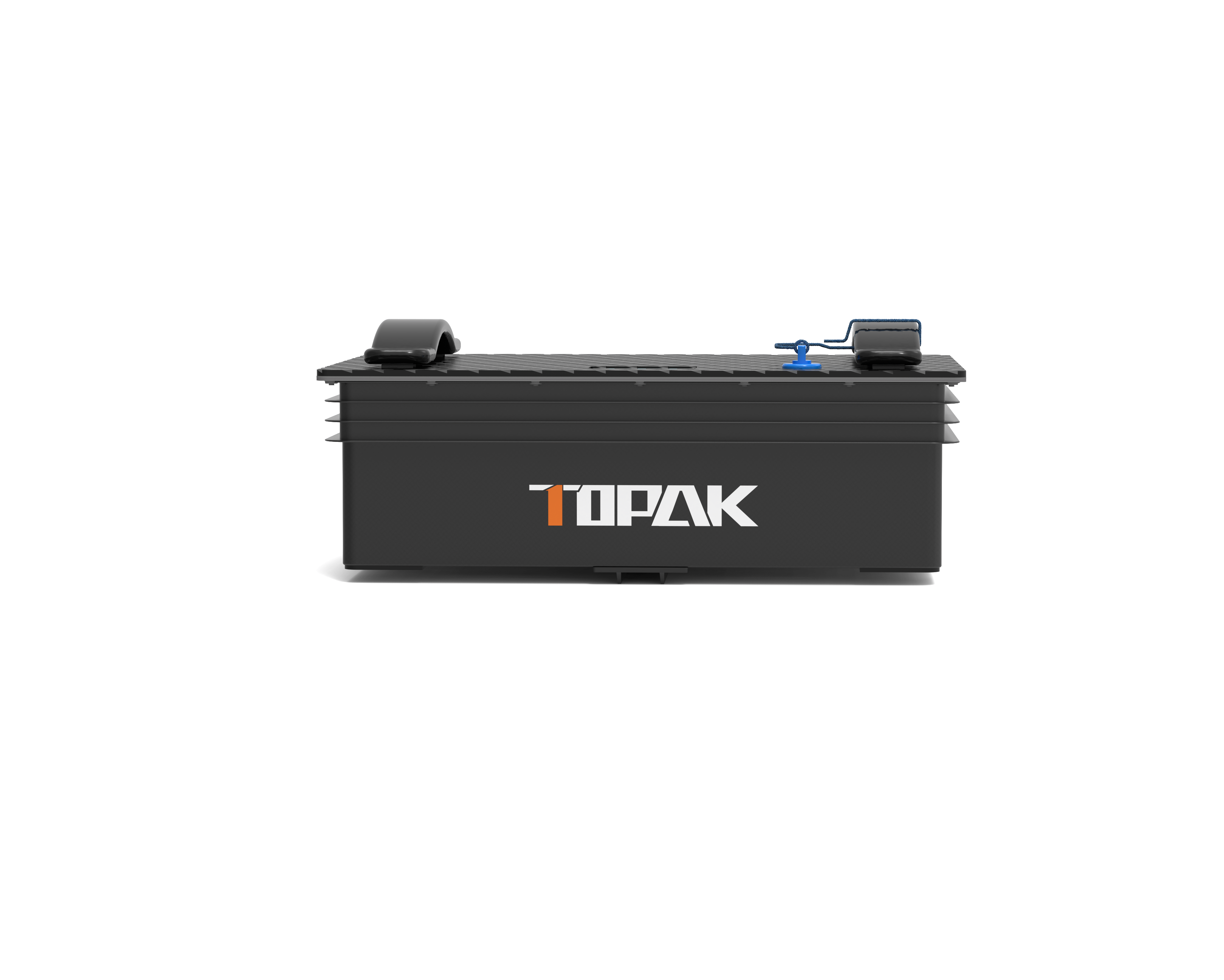

A903 65.7V 55Ah
| Specifications Nominal Voltage (V): |
65.7V
|
| Nominal Capacity(Ah): |
55Ah
|
| Rated Energy (Wh): |
3613.5Wh(3.6135KWh)
|
| Maximum Charging Voltage (V): |
83.95V
|
| Maximum Charging Current (A): |
55A
|
| Maximum Continuous Discharge Current(A): |
165A
|
| Maximum Peak Discharge Current @2s (A): | 200A |
| Maximum Load Power (W): | 12000W |
| Discharge Cut-OffVoltage (v): |
50.4V
|
| Cell Model: |
INP27148101A-55Ah
|
| Cell Combination: |
18S1P
|
| Cycle Life: |
2000 room temperature (80%)
|
| Protection Rating: | IP67 |
| Product Manual Number: |
22-01-000127
|
| Approximate Weight (kg): |
Approx. 25kg
|
|
Dimension(mm)：
|
415*285*126.5
|
| Application Areas: |
SURF SKATEBOARDS
|
