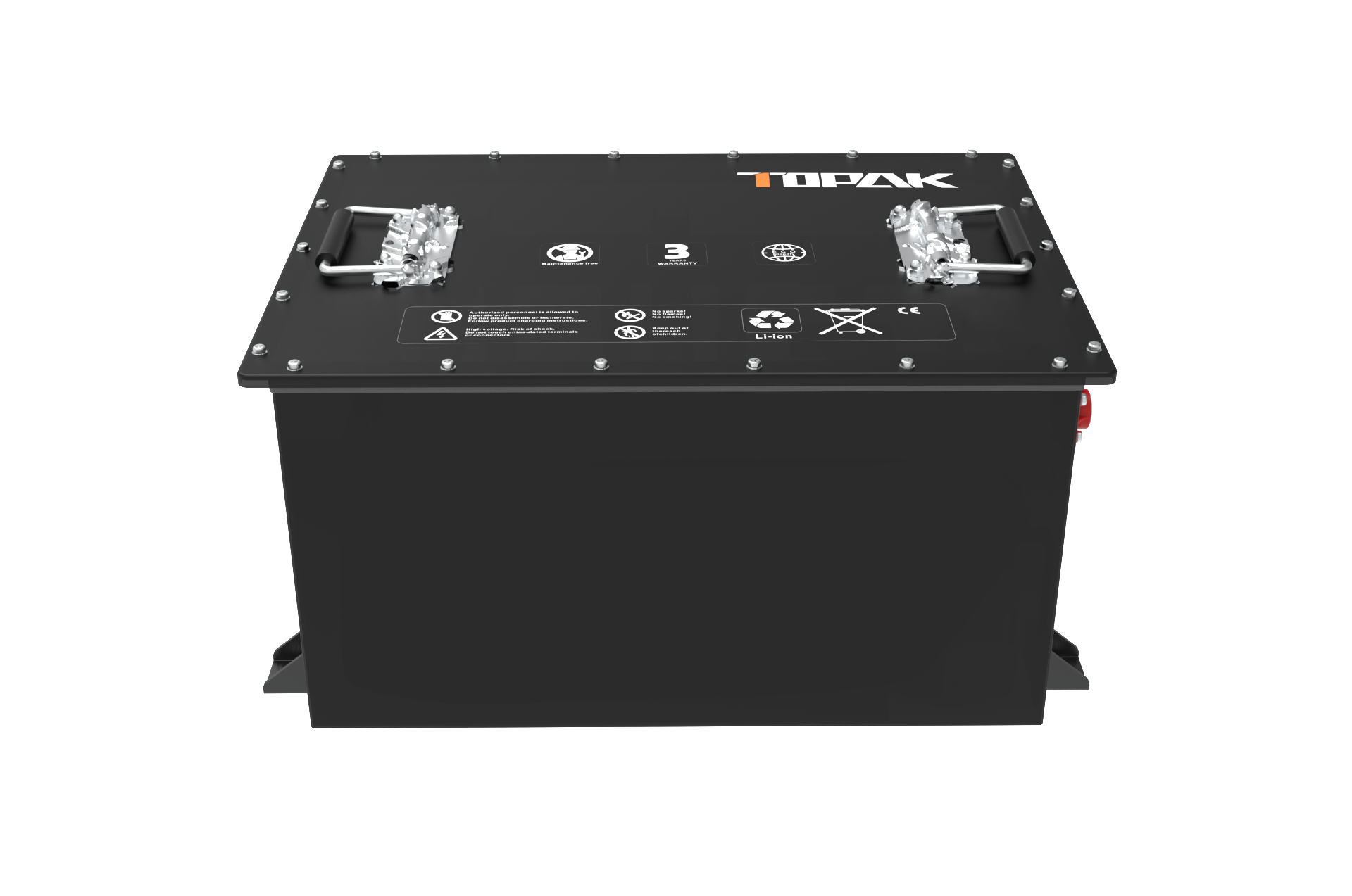

A1129 51.2V 105Ah
|
Items
|
TP-A1129-51.2V/105Ah
|
|
Nominal voltage (V)
|
51.2V
|
|
Nominal capacity (Ah)
|
105Ah
|
|
Rated energy(Wh)
|
5376Wh（5.376KWh）
|
|
Maximum charging voltage(V)
|
58.4V
|
|
Maximum charging current(A)
|
52.5A
|
|
Maximum continuous discharge current (A)
|
105A
|
|
Maximum peak discharge current@30seconds(A)
|
300A
|
|
Maximum load power (W)
|
5376W
|
|
Discharge cut-off voltage (V)
|
40V
|
|
Cell model
|
LF105/36130200/105Ah
|
|
Battery brand
|
Yiwei
|
|
Cell combination method
|
16S1P
|
|
Cycle (25°C.0.5C,DOD80%)
|
3000
|
|
Protection class
|
IP65
|
|
Overall dimensions (mm)
|
460*334*240mm
|
|
Reference weight (kg)
|
About 43.15kg
|
|
Application areas
|
golf cart
|
|
Charging temperature(°C)
|
-10~+55℃
|
|
Discharge temperature(°C)
|
-30~+60℃
|
|
Communication model
|
RS485
|
